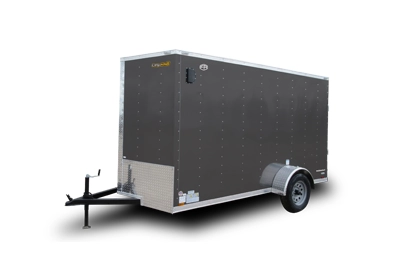

Nomad

Uncompromised quality at an affordable price. Wherever you wander, Nomad will stay behind you.

Care Camps, fighting cancer and making memories

Specifications

Print

Floorplan:NM46SANM58SANM510SANM610SANM612SANM612TA2NM712SANM712TA2NM714TA2NM716TA2NM8518TA2NM8520TA2NM8522TA2NM8524TA2NM8518TA3NM8520TA3NM8522TA3NM8524TA3
GVWR:2000 lb.2990 lb.2990 lb.2990 lb.2990 lb.7000 lb.3500 lb.7000 lb.7000 lb.7000 lb.7000 lb.7000 lb.7000 lb.7000 lb.9800 lb.9800 lb.9800 lb.9800 lb.
Payload Capacity:1251 lb.2100 lb.1890 lb.1790 lb.1690 lb.5400 lb.1900 lb.5150 lb.5050 lb.4900 lb.3930 lb.3800 lb.3670 lb.3540 lb.6450 lb.6320 lb.6190 lb.6060 lb.
Exterior Length:9' 10"11' 10"13' 10"13' 10"15' 10"15' 10"15' 10"15' 10"17' 10"19' 10"21' 10"23' 10"25' 10"27' 10"21' 10"23' 10"25' 10"27' 10"
Exterior Width:5' 5"6' 10"6' 10"7' 10"7' 10"7' 10"8' 6"8' 6"8' 6"8' 6"8' 6"8' 6"8' 6"8' 6"8' 6"8' 6"8' 6"8' 6"
Exterior Height:6' 0"6' 7"6' 6"7' 6"7' 6"8' 1"8' 0"8' 0"8' 0"8' 0"8' 4"8' 4"8' 4"8' 4"8' 4"8' 4"8' 4"8' 4"
Interior Length:7' 2"9' 2"11' 2"11' 2"13' 2"13' 2"13' 1"13' 1"15' 1"17' 1"19' 1"21' 1"23' 1"25' 1"19' 1"21' 1"23' 1"25' 1"
Interior Width:3' 9"4' 8"4' 8"5' 9"5' 9"5' 9"6' 8"6' 8"6' 8"6' 8"8' 0"8' 0"8' 0"8' 0"8' 0"8' 0"8' 0"8' 0"
Interior Height:4' 2"4' 11"4' 11"5' 11"5' 11"6' 5"6' 1"6' 1"6' 1"5' 10"6' 4"6' 4"6' 4"6' 4"6' 4"6' 4"6' 4"6' 4"
Rear Door Type:SingleDoubleDoubleDoubleDoubleDoubleDoubleDoubleDoubleDoubleRampRampRampRampRampRampRampRamp
Rear Door Width:3' 1"4' 4"4' 4"5' 4"5' 4"5' 4"6' 4"6' 4"6' 4"6' 4"7' 7"7' 7"7' 7"7' 7"7' 7"7' 7"7' 7"7' 7"
Rear Door Height:3' 9"4' 5"4' 5"5' 5"5' 5"5' 11"5' 7"5' 7"5' 7"5' 5"6' 2"6' 2"6' 2"6' 2"6' 2"6' 2"6' 2"6' 2"
Coupler Size:2"2"2"2"2"2 5/16"2 5/16"2 5/16"2 5/16"2 5/16"2 5/16"2 5/16"2 5/16"2 5/16"2 5/16"2 5/16"2-5/16"2 5/16"
Curb Weight:749 lb.890 lb.1100 lb.1200 lb.1300 lb.1600 lb.1600 lb.1850 lb.1950 lb.2100 lb.3070 lb.3200 lb.3330 lb.3460 lb.3350 lb.3480 lb.3610 lb.3740 lb.
Hitch Weight:75 lb.90 lb.110 lb.120 lb.130 lb.160 lb.160 lb.185 lb.200 lb.215 lb.310 lb.320 lb.330 lb.340 lb.340 lb.350 lb.360 lb.370 lb.
Hitch Height:20"16"16"16"16"17"18"18"18"20"20"20"20"20"20"20"20"20"
Platform Height:20"17"17"17"17"19"19"19"19"19"18"18"18"18"18"18"18"18"
Axle:20002990299029902993500350035003500350035003500350035005200520052005200
Suspension:TBDTBDTBDTBDTBDTBDTBDTBDTBDTBDTBDTBDTBDTBDTBDTBDTBDTBD
Brakes:N/AOptionalOptionalOptionalOptionalElectricElectricElectricElectricElectricElectricElectricElectricElectricElectricElectricElectricElectric
Tires:530/12ST205/75R15/CST205/75R15/CST205/75R15/CST205/75R15/CST205/75R15/CST205/75R15/CST205/75R15/CST205/75R15/CST205/75R15/CST205/75R15/CST205/75R15/CST205/75R15/CST205/75R15/CST225/75D15/DST225/75D15/DST225/75D15/DST225/75D15/D
Wheels:5 Bolt5 Bolt5 Bolt5 Bolt5 Bolt5 Bolt5 Bolt5 Bolt5 Bolt5 Bolt5 Bolt5 Bolt5 Bolt5 Bolt6 Bolt6 Bolt6 Bolt6 Bolt
Main Frame:Angle3" Tube3" Tube3" Tube3" Tube4" Tube4" Tube4" Tube4" Tube6" I-Beam6" I-Beam6" I-Beam6" I-Beam6" I-Beam6" I-Beam6" I-Beam6" I-Beam6" I-Beam
Floor:3/4" Plywood3/4" Plywood3/4" Plywood3/4" Plywood3/4" Plywood3/4" Plywood3/4" Plywood3/4" Plywood3/4" Plywood3/4" Plywood3/4" Plywood3/4" Plywood3/4" Plywood3/4" Plywood3/4" Plywood3/4" Plywood3/4" Plywood3/4" Plywood
Walls:3/16" Lauan3/8" Plywood3/8" Plywood3/8" Plywood3/8" Plywood3/8" Plywood3/8" Plywood3/8" Plywood3/8" Plywood3/8" Plywood3/8" Plywood3/8" Plywood3/8" Plywood3/8" Plywood3/8" Plywood3/8" Plywood3/8" Plywood3/8" Plywood

Features & Options

Print
  • Double Rear Doors
  • 18" Wedge-Front Nose
  • C/S Door (24" on 5 wide, 32" on 6 wide, 36" on 7 & 8 wide)
  • Semi-Style Camlock Door Latch
  • Door Hold-Back on Rear Door
  • Leaf-Spring Axle
  • Silver Powder Coated Wheels
  • Radial Tires
  • Galvanized Roof
  • Aluminum Top Rails
  • 16" ATP Stoneguard
  • 1 – 12V LED Dome Light
  • 2 - Flow Thru Sidewall Vents
  • DOT Lighting
  • Aluminum Exterior Fenders
  • Clear Lens LED Clearance Lights
  • Clear Lens LED Strip Tail Lights
  • License Plate Holder with Built-In Light
  • .030 White Aluminum Exterior
  • ATP Aluminum Wrap on rear
  • Exposed Steel Painted Epoxy Black
  • Undercoated Frame
  • Tongue Jack w/ Sand Pad
  • Welded Safety Chains
  • Full-Color Decals
  • 8'6" Wides include:
  • 102" Wide Body Design
  • Ramp Door with Spring Assist
  • No-Show Beavertail
  • 36" Side Door with Steel Step
  • 2-12 Volt LED Dome Lights
  • 1-Roof Vent in addition to Side Vents
  • 16" O/C Roof Upgrade
  • One-Piece Aluminum Roof
  • 36" RV Door Upgrade (No Window or Screen)
  • (2) LED Loading Lights with switch
  • (2) Stabilizer Jacks Under Rear Corners
  • 6" of ATP Along Exterior Bottom of Sidewalls
  • 24" Aluminum Tread Plate Stoneguard Upgrade
  • 1 - LED Dome Light (total of 2)
  • 1 - 12 Volt Switch for LED Domes
  • Flushlock
  • Rear Ramp Door
  • 24" Aluminum Tread Plate Stoneguard Upgrade
  • 1 - LED Dome Light (total of 2)
  • 1 - 12 Volt Switch for LED Domes
  • 1 Pair Stabilizer Jacks
  • 24" Aluminum Trade Plate Stoneguard Upgrade
  • 3 - LED Dome Light (total of 4)
  • 2 - 12 Volt Switches for LED Domes
  • 16" O/C Floor Crossmembers
  • 6" Extra Height
  • Rear Ramp Door
  • 1 Pair Stabilizer Jacks
  • 4-Surface Mount D-Rings
  • 16" O/C Roof
  • 16" O/C Floor Members
  • 60" Triple Tube Tongue
  • 3/4" Plywood Walls
  • (2) LED Loading Lights with switch
  • (2) 2-Way Sidewall Vents (Aluminum)
  • (3) Aluminum Ladder Rack Sections
  • (2) 2-Way Sidewall Vents (Aluminum)
  • (2) Non-Powered Roof Vents
  • 48" Side Door with Flushlock
  • 54" Extended Triple-Tube Tongue
  • 16" O/C Floor Upgrade
  • Rear Ramp Door with Spring Assist
  • (2) 12V LED Dome Lights (Total of 4)
  • (1) Wall Switch (Total of 2)
  • Surface Wall Mount E-Track (1 Row on Each Sidewall)
  • Shelf Across Front of Trailer (24" Deep with 3" Lip)
  • (2) 2-Way Sidewall Vents (Aluminum)
  • (1) Non-Powered Roof Vent
  • 54" Extended Triple-Tube Tongue
  • 16" O/C Floor Upgrade
  • 16" O/C Roof Upgrade
  • Rear Ramp Door with Spring Assist
  • (2) 12V LED Dome Lights (Total of 4)
  • (1) Wall Switch (Total of 2)
  • (2) 2-Way Sidewall Vents (Aluminum)
  • (1) Non-Powered Roof Vent (Total of 2)
  • 60" Extended Triple-Tube Tongue
  • 16" O/C Floor Upgrade
  • 16" O/C Roof Upgrade
  • Reinforced Rear Ramp Door with Spring Assist
  • (2) 12V LED Dome Lights (Total of 4)
  • (1) Wall Switch (Total of 2)
  • Extra Grab Handle on Rear Ramp Door
  • 3/4" Plywood Kickplate on Interior Walls
  • Surface Mount E-Track on Sidewalls, 1 Row Per Wall
  • Locking Hasps on Side and Rear Doors
