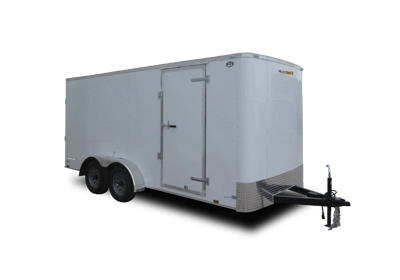

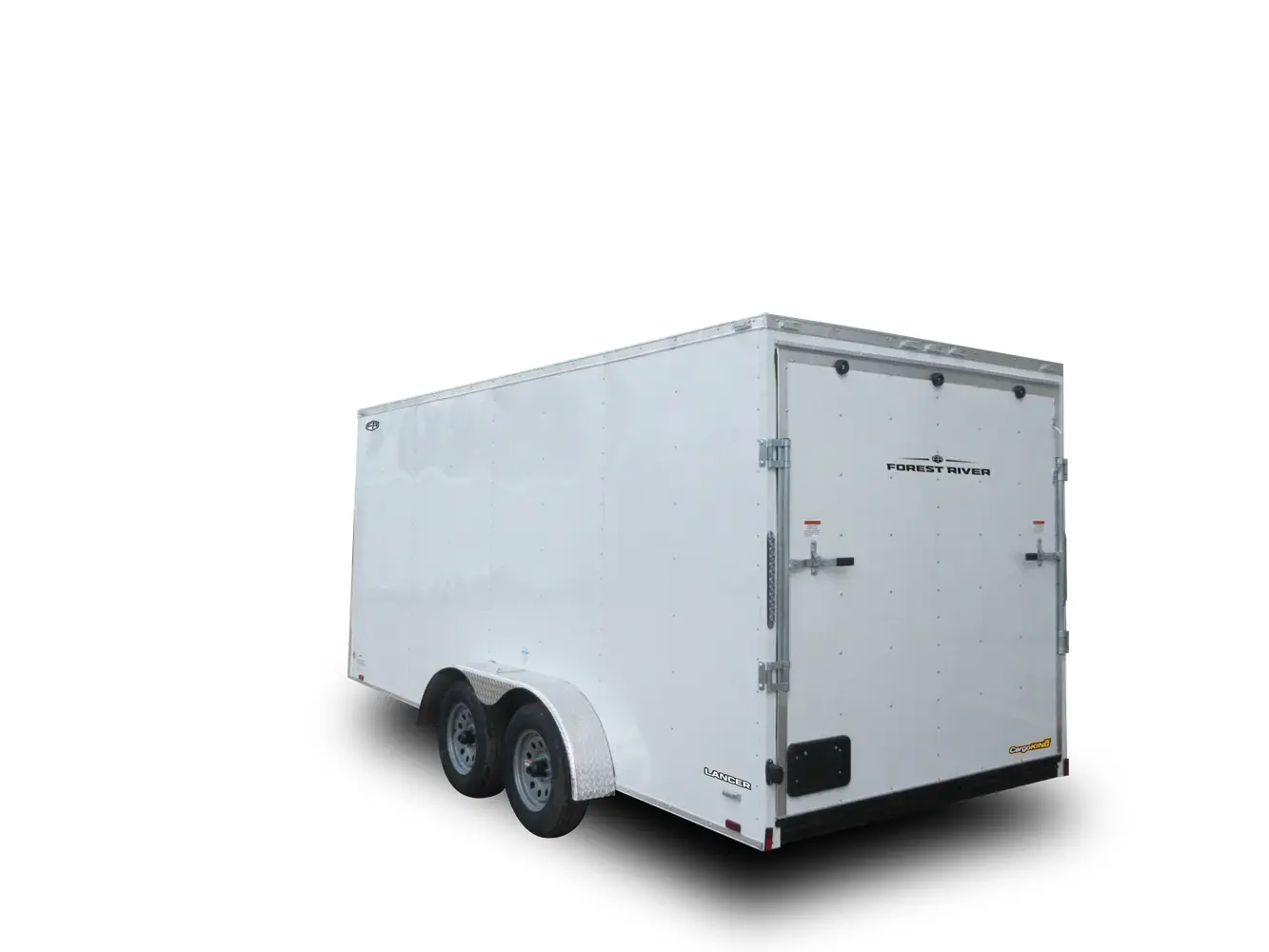

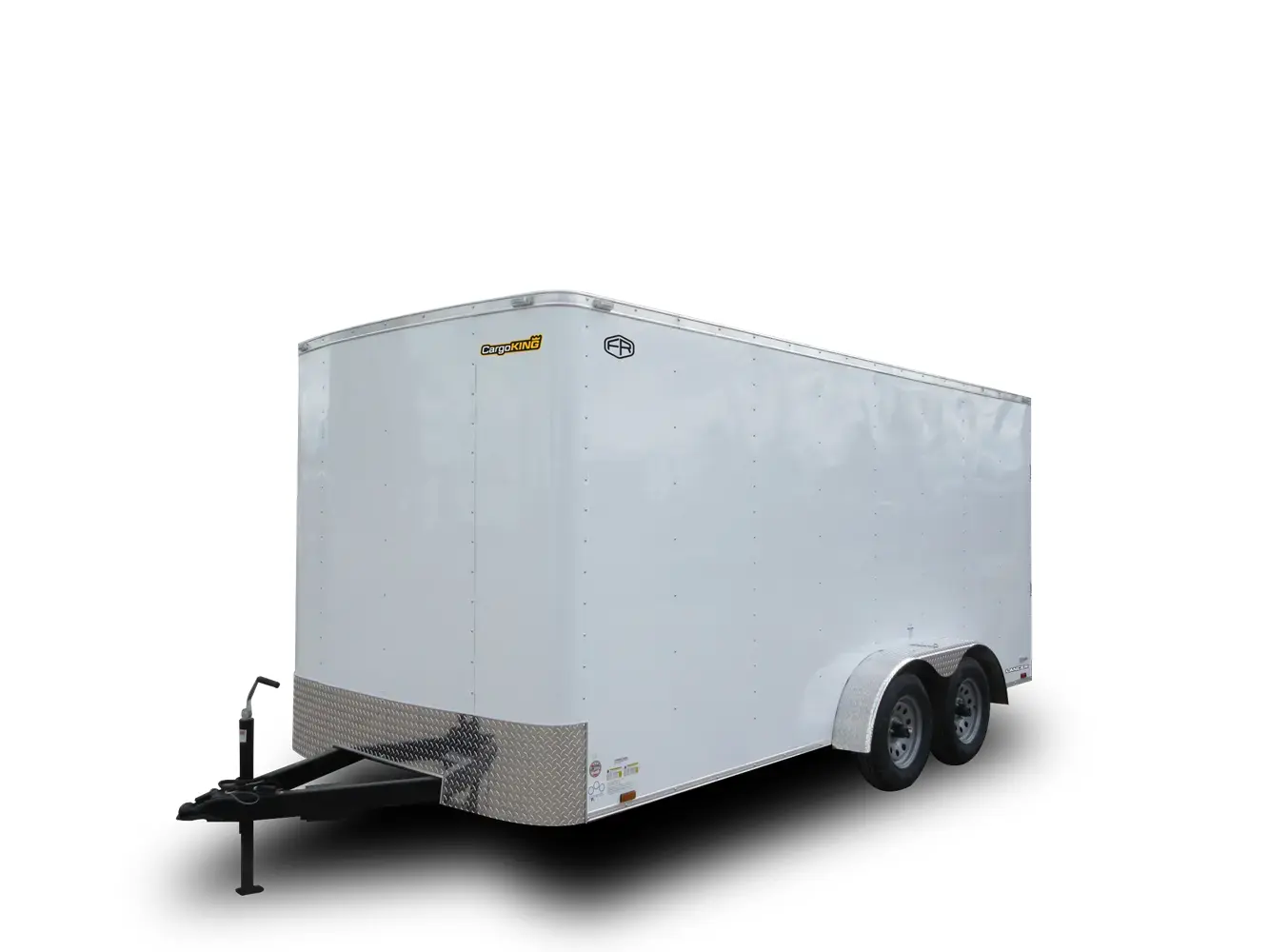

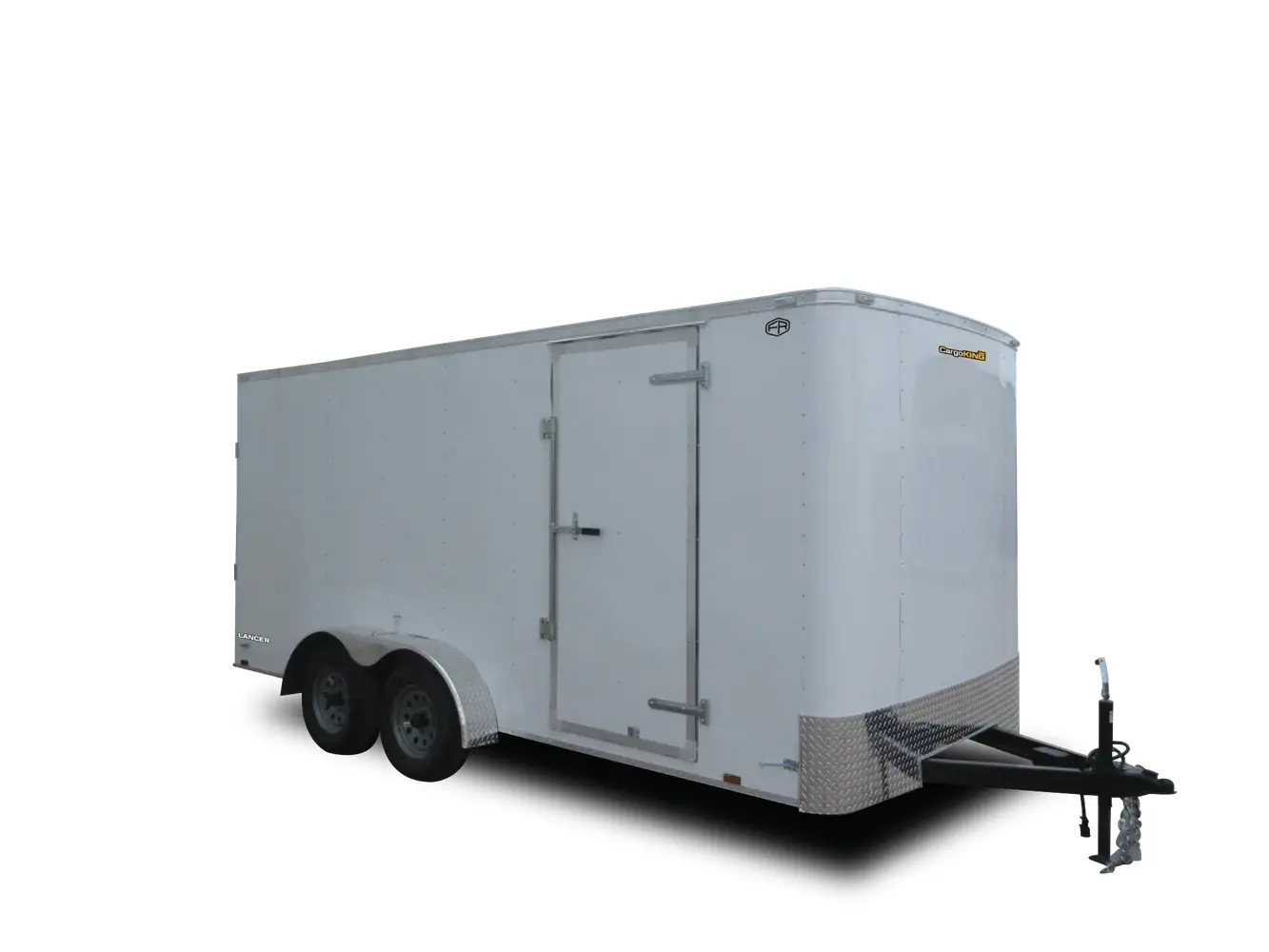

Lancer

Feature packed reliable design. For the budget conscious traveler.

Care Camps, fighting cancer and making memories

Specifications

Print

Floorplan:LN58SALN510SALN610SALN612SALN714TA2LN716TA2LN816TA2
GVWR:2990 lb.2990 lb.2990 lb.2990 lb.7000 lb.7000 lb.7000 lb.
Payload Capacity:2160 lb.2090 lb.1965 lb.1890 lb.5080 lb.4780 lb.4600 lb.
Exterior Length:11' 10"13' 10"13' 10"15' 10"17' 10"19' 10"19' 10"
Exterior Width:6' 10"6' 10"7' 10"7' 10"8' 6"8' 6"8' 6"
Exterior Height:6' 6"6' 6"7' 6"7' 6"7' 8"7' 8"8' 2"
Interior Length:8' 5"10' 5"10' 5"12' 5"14' 5"16' 5"16' 5"
Interior Width:4' 9"4' 9"5' 9"5' 9"6' 8"6' 8"7' 6"
Interior Height:4' 11"4' 11"5' 11"5' 11"6' 2"6' 2"6' 4"
Rear Door Type:SingleSingleDoubleDoubleDoubleDoubleDouble
Rear Door Width:4' 4"4' 4"5' 4"5' 4"6' 4"6' 4"7' 1"
Rear Door Height:4' 5"4' 5"5' 5"5' 5"5' 9"5' 9"5' 11"
Coupler Size:2"2"2"2"2-5/16"2 5/16"2 5/16"
Curb Weight:830 lb.900 lb.1025 lb.1100 lb.1920 lb.2120 lb.2400 lb.
Hitch Weight:80 lb.90 lb.120 lb.120 lb.210 lb.240 lb.250 lb.
Hitch Height:16"16"17"17"18"18"20"
Platform Height:17"17"17"17"19"19"21"
Axle:2990299029902990350035003500
Suspension:TBDTBDTBDTBDTBDTBDTBD
Brakes:N/AN/AN/AN/AElectricElectricElectric
Tires:ST205/75R15ST205/75R15ST205/75R15ST205/75R15ST205/75R15ST205/75R15ST205/75R15
Wheels:5 Bolt5 Bolt5 Bolt5 Bolt5 Bolt5 Bolt5 Bolt
Main Frame:3" Tube3" Tube3" Tube3" Tube4" Tube4" Tube6" I Beam
Floor:3/4" Plywood3/4" Plywood3/4" Plywood3/4" Plywood3/4" Plywood3/4" Plywood3/4" Plywood
Walls:3/8" Eng. Wood3/8" Eng. Wood3/8" Eng. Wood3/8" Eng. Wood3/8" Eng. Wood3/8" Eng. Wood3/8" Eng. Wood

Features & Options

Print
  • Steel Framed Walls, Floor & Roof
  • Double Rear Doors
  • Semi Style Camlock Door Latch on Rear Doors
  • Leaf-Spring Axles
  • All-Wheel Electric Brakes w/Breakaway*
  • 12-Volt Breakaway Switch with Battery*
  • Silver Powder Coated Wheels
  • Black Center Caps
  • Radial Tires
  • Galvanized Roof
  • C/S Door (24" on 5 wide, 32" on 6 wide, 36" on 7 & 8 wide)
  • 12" Stoneguard
  • 1 – Interior LED Dome Light
  • 3/8" Engineered Wood Paneling On Walls (24" o/c)
  • 3/4 Plywood Floor (24" o/c)
  • ATP Exterior Aluminum Fenders
  • Clear Lens LED Clearance Lights
  • Clear Lens LED Strip Tail Lights
  • .030 White Aluminum Exterior (Additional Charge for Color)
  • Black, Charcoal, Diamond Ice And Red Exterior Colors Available
  • Aluminum Wrap on Rear Corners & Header
  • Undercoated Frame
  • Tongue Jack w/ Sand Pad
  • Welded Safety Chains
  • Steel Sealed Sidewalls
