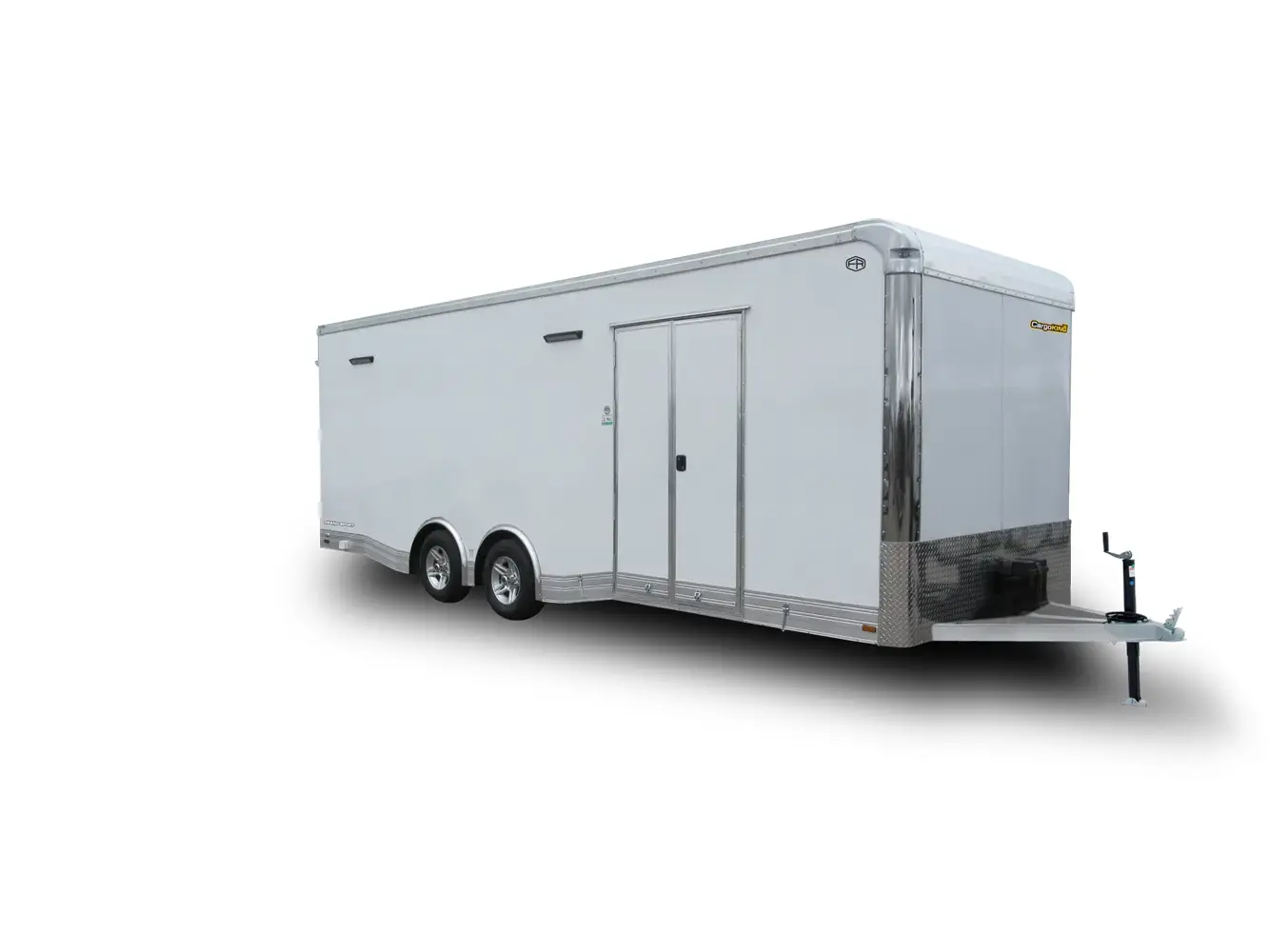

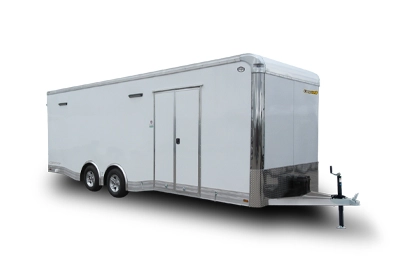

Grand Sport-Aluminum

From road to track. Our Grand Sport all aluminum frame auto haulers shine above the rest giving you the capability and support you expect from a trailer bred for style and class. From car haulers to stackers, and everything in between.

VIEW THE TOP REASONS TO BUY CARGO KING

Care Camps, fighting cancer and making memories

Specifications

Print

Floorplan:GSA8518TA2GSA8520TA2GSA8522TA2GSA8522TA3GSA8524TA3GSA8526TA3GSA8528TA3
GVWR:7000 lb.7000 lb.7000 lb.9800 lb.9800 lb.9800 lb.9800 lb.
Payload Capacity:3925 lb.3550 lb.3225 lb.6000 lb.5700 lb.5400 lb.5000 lb.
Exterior Length:22' 0"24' 0"26' 0"26' 0"28' 0"30' 0"32' 0"
Exterior Width:8' 6"8' 6"8' 6"8' 6"8' 6"8' 6"8' 6"
Exterior Height:8' 4"8' 4"8' 4"8' 4"8' 4"8' 4"8' 4"
Interior Length:18' 0"20' 0"22' 0"22' 0"24' 0"26' 0"28' 0"
Interior Width:8' 0"8' 0"8' 0"8' 0"8' 0"8' 0"8' 0"
Interior Height:6' 5"6' 5"6' 5"6' 5"6' 5"6' 5"6' 5"
Rear Door Type:RampRampRampRampRampRampRamp
Rear Door Width:7' 6"7' 6"7' 6"7' 6"7' 6"7' 6"7' 6"
Rear Door Height:0' 77"0' 77"0' 77"0' 77"0' 77"0' 77"0' 77"
Coupler Size:2 5/16"2 5/16"2 5/16"2 5/16"2 5/16"2 5/16"2 5/16"
Curb Weight:3075 lb.3450 lb.3775 lb.3800 lb.4100 lb.4400 lb.4800 lb.
Hitch Weight:310 lb.350 lb.380 lb.380 lb.410 lb.440 lb.480 lb.
Hitch Height:16"16"16"16"16"16"16"
Platform Height:18"18"18"18"18"18"18"
Axle:2-3500 lbs2-3500 lbs2-3500 lbs2-3500 lbs2-3500 lbs2-5200 lbs2-5200
Suspension:TBDTBDTBDTBDTBDTBDTBD
Brakes:ElectricElectricElectricElectricElectricElectricElectric
Tires:ST205/75R15LRCST205/75R15LRCST205/75R15LRCST225/75R15DST225/75R15DST225/75R15DST225/75R15D
Wheels:5 Bolt5-Bolt5-Bolt6-Bolt6-Bolt6-Bolt6-Bolt
Main Frame:2 x 7 Dbl. Hollow2 x 7 Dbl Hollow2 x 7 Dbl Hollow2 x 7 Dbl Hollow2 x 7 Dbl Hollow2 x 7 Dbl Hollow2 x 7 Dbl Hollow
Floor:3/4" Plywood3/4" Plywood3/4" Plywood3/4" Plywood3/4" Plywood3/4" Plywood3/4" Plywood
Walls:3/8" Plywood3/8" Plywood3/8" Plywood3/8" Plywood3/8" Plywood3/8" Plywood3/8" Plywood

Features & Options

Print
  • All Aluminum Tube Frame
  • Aluminum Alloy Wheels With Radial Tires
  • 16” O/C Floor Crossmembers
  • Triple Tube Tongue
  • 16” O/C Wall And Roof Studs
  • 102” Wide Body Design
  • Ramp Door With Spring Assist
  • No Show Beaver Tail
  • Torsion Wide Track Axles
  • All Wheel Electric Brakes With Breakaway Kit
  • E-Z Lube Hubs With Grease Caps
  • Insulated White Vinyl Ceiling With Aluminum Trim
  • Premium Plywood Floor With (4) 5k D-Rings
  • Polished 24” ATP Front Stoneguard
  • Bonded (.030) Exterior Aluminum Skin
  • (1) Piece Aluminum Roof
  • Polished Cast Aluminum Front And Rear Corners
  • Stainless Steel Front Corner Radius
  • Heavy Duty 4” Exterior Bottom Trim
  • (2) Roof Vents
  • All LED Exterior Lighting
  • (4) LED Dome Lights With Two Switches
  • All 110-Volt Packages require a finished ceiling
  • (2) 4' Fluorescent Lights with (1) Wall Switch
  • (2) Interior Wall Recepts
  • Exterior Wall Recept with GFI
  • With Lifeline and Motorbase Plug
  • All 110-Volt Packages require a finished ceiling
  • All 110-Volt Packages require a finished ceiling
  • (5) 4' Fluorescent Lights with (1) Wall Switch
  • (2) 500-Watt Recessed Quartz Lights with (1) Wall Switch
  • (2) Interior Wall Recepts
  • Exterior Wall Recept with GFI
  • 30-Amp Breaker Panel with Lifeline and Motorbase Plug
  • Adds all items in the 110V Racer's Package
  • Heavy Duty 8" Extruded Base Trim
  • .040 Exterior Metal (White or Black)
  • Rubber Floor Covering Front 8' w/ATP Rear and on Ramp
  • Double 24" RV Doors with Piano Hinges and Flush Lock
  • L-Shaped Base Cabinet with Overhead and Wardrobe
  • Glued Interior Aluminum Wall Panels
  • Freezer-Type Ramp Door Latches
  • Race Mate (4) Piece Accessory Pack
  • 36" x 24" Vented Generator Door
  • (ONLY avail. on GrandSport Models)
  • White Aluminum Wall Liner
  • Vinyl Flooring (Specify Color)
  • Aluminum Tread Plate on Ramp and Flap
  • (Requires 7" frame or larger)
  • 30 Gallon Fuel Tank
  • Fuel Fill
  • Pumping Station
  • Timer Switch
  • Under Floor Storage
  • Runs on 12V System
  • 36" RV Side Door ILO 48"
  • Deck Over Floor (No Interior Wheel Box)
  • 12" ATP Kickplate
  • 5" Wedge Front (Slant Wedge Delete For Tall Ramp)
  • Front Ramp Door In Wedge
  • 5,000 lb. D-Ring Tie-Downs (9 Total)
  • Pressure Treated Flooring and Ramps
  • (1) 48" Overhead Cabinet
  • (1) 48" Stainless Helmet Rack
  • Stabilizer Jacks Under Rear Corners
  • LED Dome Lights (6 Total)
  • 36" RV Side Door ILO 48"
  • Rampover Interior Wheel Boxes
  • 5" Wedge Front (Slant Wedge Delete For Tall Ramp)
  • Front Ramp Door In Wedge
  • 5,000 lb. D-Ring Tie-Downs (9 Total)
  • (1) 48" Overhead Cabinet
  • Stabilizer Jacks Under Rear Corners
  • LED Dome Lights (6 Total)
